৳ 622.25
Contact us on WhatsApp
The SIM7600-H-PCIE series integrates multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the SIM7600-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

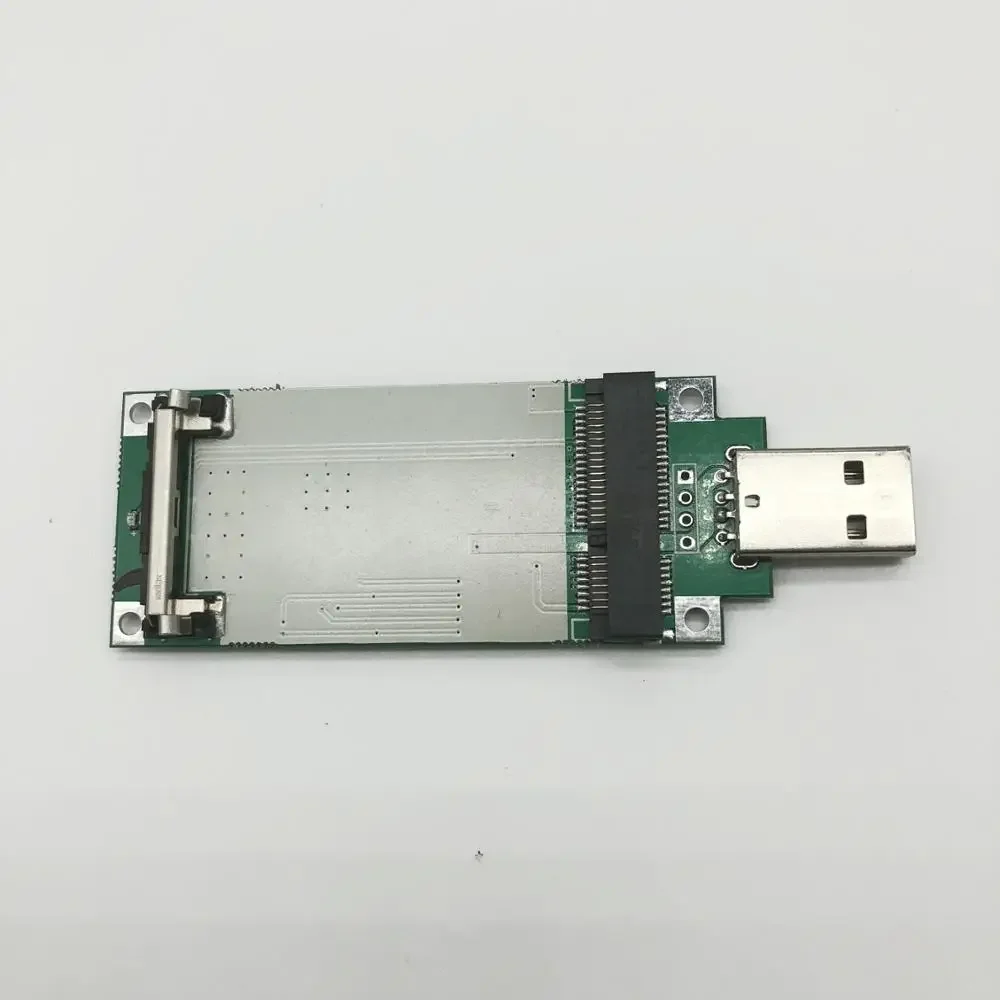

Mini PCI-Express MINI pcie pci express PCI-E Wireless WWAN to USB 2.0 Adapter Card with SIM Card Slot Module for Testing Tools
Support sierrawireless, Telit, cinterion, Ericsson, SAMSUNG, China domain, Datang and other brands 3G 4G card, for the Internet through the USB port and the module brush machine, debugging, testing and unlock.
The adapter has integrated with a SIM card slot and 1 or 2 WWAN antenna.The light will be on if it works well as the picture.
Mini PCI-E to USB Port 52PIN with SIM Slot Module.
Ideal for testing the WWAN cards. You don't need to break or open your laptop to test your WWAN modules.
has integrated with a SIM card slot and 1 or 2 WWAN antenna It can work with most of WWAN modules.
Very easy to use. Don't need extra drivers. Just make sure you have installed the drivers & software for your WWAN card.
It work with desktop computer and laptop computer with WINDOWS OS (XP & VISTA).
With SIM/UIM card slot at the switch interface, it enables you to use 3G module directly when SIM card installed.
2.New version of the product features:
1. There are fixed modules of the lock, so that the user easy to install and improve the reliability and stability of the module work. All connectors and tail fork are used molex original import connector.
2.PCB added four screw holes, so that this adapter can be used for small internal control cabinet.
3.SIM card on the side. This product has two options, the side of the ordinary plug SIM card holder, side plug from the bombing SIM card seat. So that users can easily disassemble SIM card. Gently press the SIM automatically pops up.
4. Add USB 4-wire input bay, can be directly welded USB cable. Circuit protection more and more comprehensive.
How it works: Mini PCI-E52pin interface defines USB signal and 3.3V voltage, the adapter is the USB interface 5V voltage through the LDO chip is converted to 3.3V, supply module and USIM / SIM work, the signal bus for the USB signal.
3.Specification Description:
1. Product size specifications: 65 * 31mm
2.Mini PCI-E design conforms to the 1.30 version industry specification
3. USB design conforms to USB 2.0 industry specification, backward compatible with 1.1 specification
4. This adapter is suitable for full-height (30 * 50-51mm) WWAN / 3G / WiFi modules (USB bus)
5. Live status LED real-time display
6. The product does not need any software drivers
Special statement: This product is the adapter board, MINI PCI-E into USB, not 3G card, this product does not contain 3G 4G module, if there is no 3G 4G module, is not the Internet! The transfer interface is mainly used for DIY or test module, this component does not contain the shell does not contain the antenna.
4.Compatibility list:
HuaWei: EM730/EM770/EM770V/EM770W/MU609/MU709/MU909/MU709S-6/ME909S-120/ME909U-521/MU909-821/
Sierra Wireless:MC8755/MC8775/MC8780/MC8781/MC8790/MC8090/MC9090/MC8795V//MC8704/MC8705/MC5725/MC5720/MC8355//MC7710/MC7700/MC7750/MC7304/MC7455/MC7430/MC7354/MC7330 and so on
SIMCOM：sim7100,sim7600 Series all mini PCIE Modules such as SIM7100A/SIM7100C/SIM7100E/SIM7100CE /SIM7600C/SIM7600CE SIM5360A/SIM5360E
Ericsson:F3507G/ D E L L 5530
Novatel Wireless:EU850D/EU870D/ D E L L 5520
Option NV:GTM378/GTM380/GTM382
ZTE：MF210 MF210V1 MF210V2 AD3812 MC2716 ME3620 ME3630 ME3760 ME3610 等等。
LONG SUNG：U8300 U8300W U8300C C5300V U7500E and so on
SIMCOM：sim7100,sim7600 Series all mini PCIE Modules
Package list 1: PCIE to usb adapter *1pcs
Package list 2: 4G LTE Antenna used in SIM7600E-H *2pcs
Package list 3: SIMCOM SIM7600E-G PCIE *1pcs
1.Only defective product will be offered exchange.
2.Defective products must be returned within 30 days from the date you placed your order.
3.It may take up to 7 business days to process your return after we receive your product.The buyer is responsible for all further shipping fees.
1.We can ship to all over the world.But sometimes if you can't find the shipping terms to your country.Please just contact us and we will solve this problem for you. Items will be shipped within 1-3 business days after we verify your payment.
2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.
3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express.
4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don't receive the item within thirty days, please contact us, and then I will help you track it.
1. Please confirm the receipt of the products after you got them.
2. If you have any question for the products you received, please contact us in time and we will try our best to solve the problems and make you satisfied.
3. Please give us the 5 Star positive feedback.Thanks for your time! Welcome to visit again!
EMAX ELECTRONIC CORPORATION LIMITED, is a worldwide leading distributor that provides one-stop supply chain solutions to meet all kind of demanding in electronic components and 2G 3G 4G GPS/GSM Moudles.
Our abundant inventory availability is supplemented through a global network of domestic and overseas suppliers, which ensuring our customers the best possible pricing on materials as well as confident access to obsolete, shortage, urgent and hard-to-find components.
We believe we can slove your all problems on electronic components! Please do not hesitate in Contacting us.You can be assured of our best attention!!!

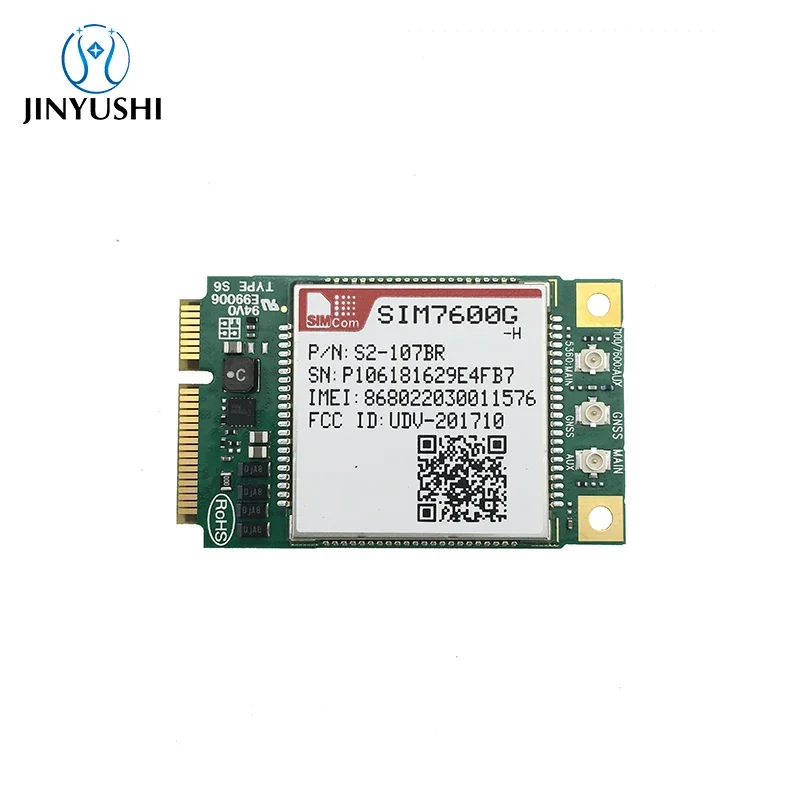

The latest price of SIM7600G-H SIMCOM MINIPCIE CAT4 LTE Module Guaranteed 100% New Original Global version of SIM7600E-H SIM7600SA-H SIM7600A-H in Bangladesh is BDT ৳ 622.25. You can buy the SIM7600G-H SIMCOM MINIPCIE CAT4 LTE Module Guaranteed 100% New Original Global version of SIM7600E-H SIM7600SA-H SIM7600A-H at the best price from our Shosta Dokan or visit Shosta Dokan Office.
There are no reviews yet.
