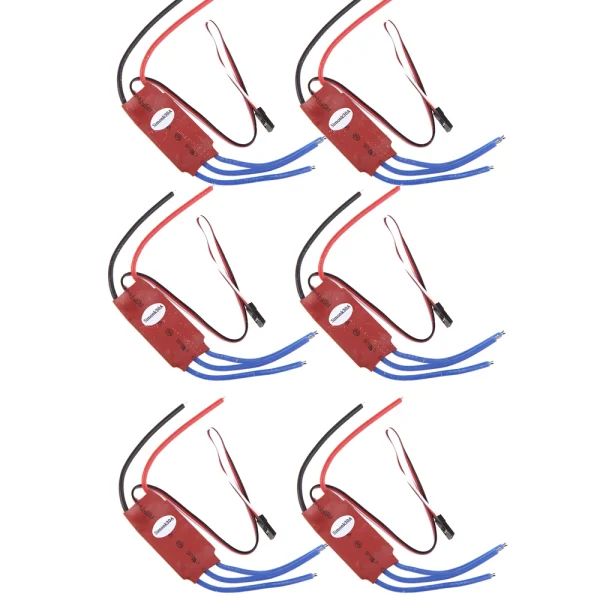

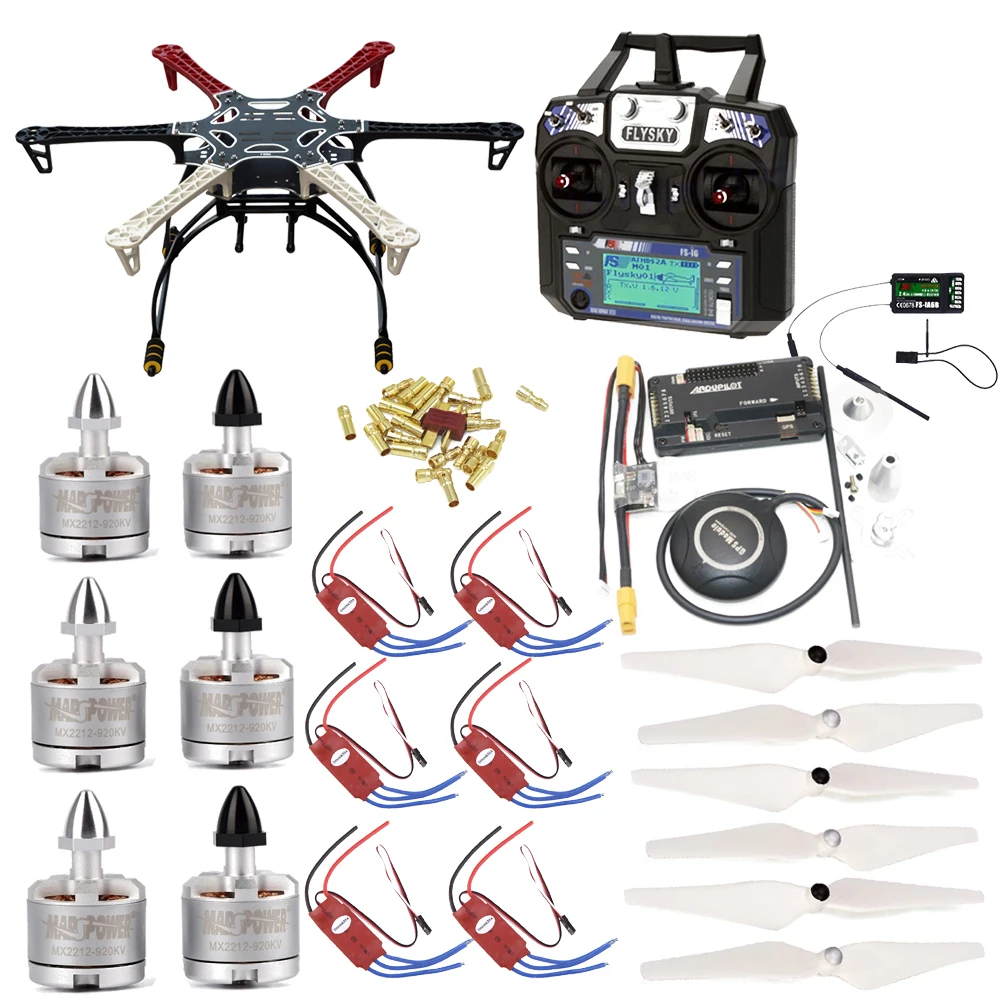

F550 Quadcopter Frame Kit With APM2.8 Controller Board/7M GPS/2212 920KV Motor/30A SimonK ESC/Flysky FS-i6 TX For Rc Drone Toys

F550 Quadcopter Frame Kit with APM2.8 Controller board/7M GPS/2212 920KV cw/ccw/30A SimonK ESC/Flysky FS-i6 TX For Rc Quadcopter

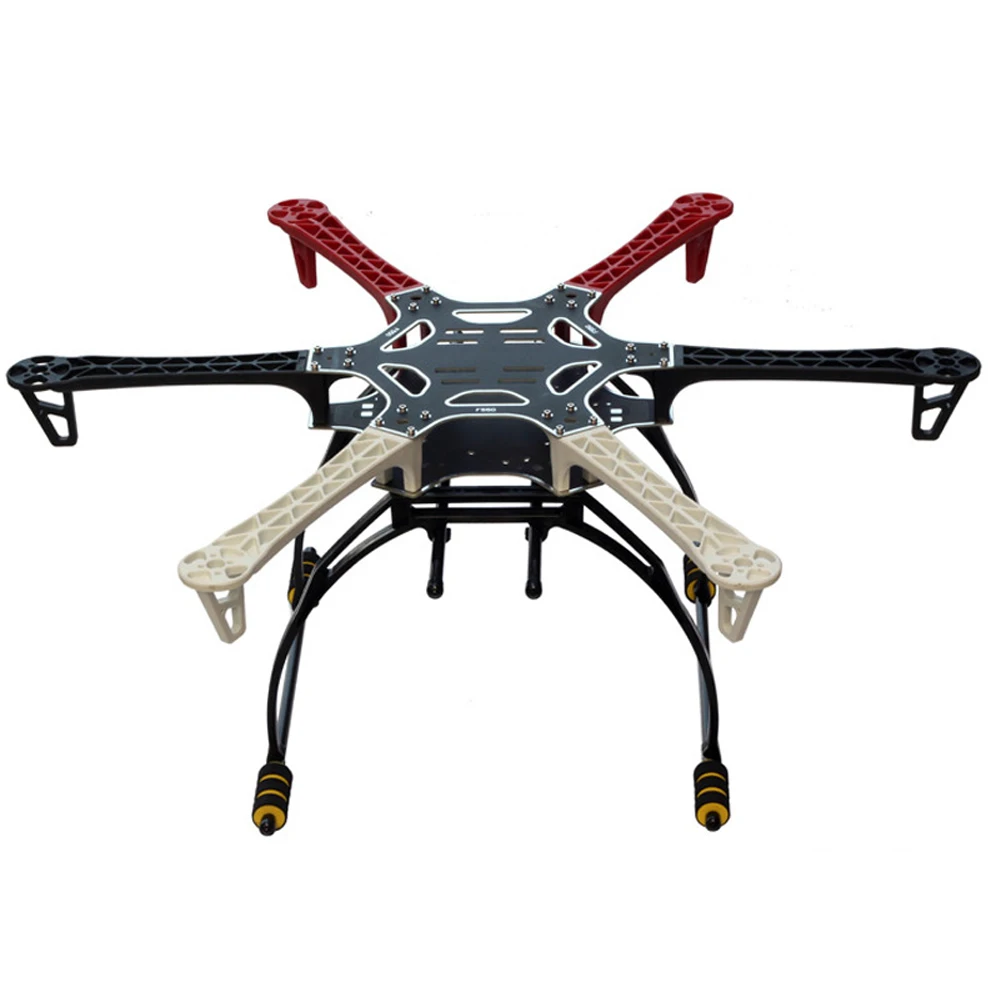

F550 Hexacopter Frame:
HJ550 is a series of "Firewheel" Multicopter frame from HJ. It is very suitable for RC beginner althougn HJ550 have simple design, with built-in circuit board for ESC power distribution, seldom parts but strong structure to let user more easier for maintenance. The mounting holes design can fit for different controller board e.g. KK, FF, MK, MWC in the RC market, it can fulfill different kind of user need e.g. FPV.
Motor: A2212/2216/2814 800KV~1000KV
ESC: 20A ~ 30A
Propeller Size: 10×4.5 in or 10×4.7 in
Battery: 4s 2000mah ~ 3600mah Lipo
Size:550MM(Wheelbase)
Colour:Black,Red&White Arm
Material:Fiber Glasses&Plastic
Weight:448g
Please note that the thickness of the 4 motor arms are 5mm, pls use M3x8 screw for motor fixing.

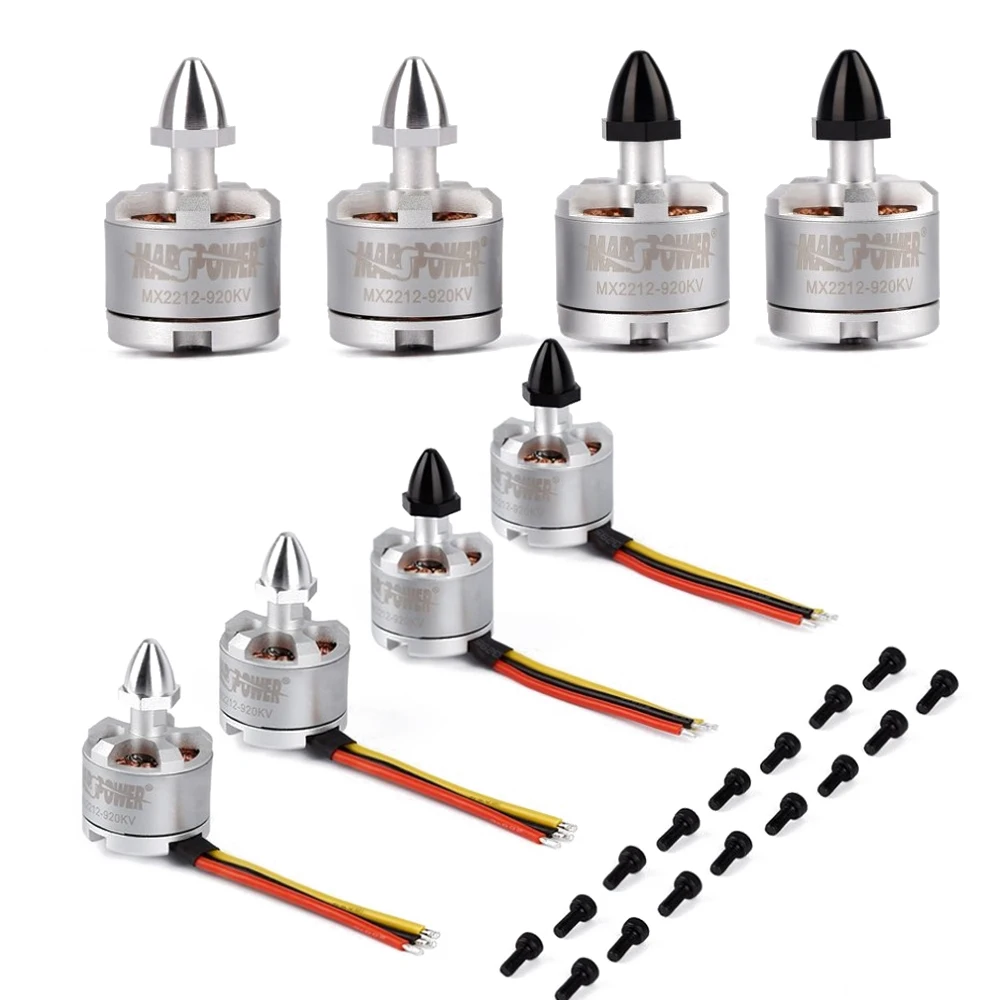

MARSPOWER MX2212 920KV Brushless Motor:
Name: MX2212 920KV Brushless Motor
Model: MX2212
Engine KV value: 920KV
Recommended Take-off Weight: 300g/axis
Maximum Tension: 800g/axis
Working Temperature: -5C to 40C
Stator Size: 22 x 12 mm
Diameter/Pitch: 24 x 11 cm
Motor Size: approx. 4.7 x 2.8cm
Axle: 3mm
Color: silver
Motor Weight: 229.6g

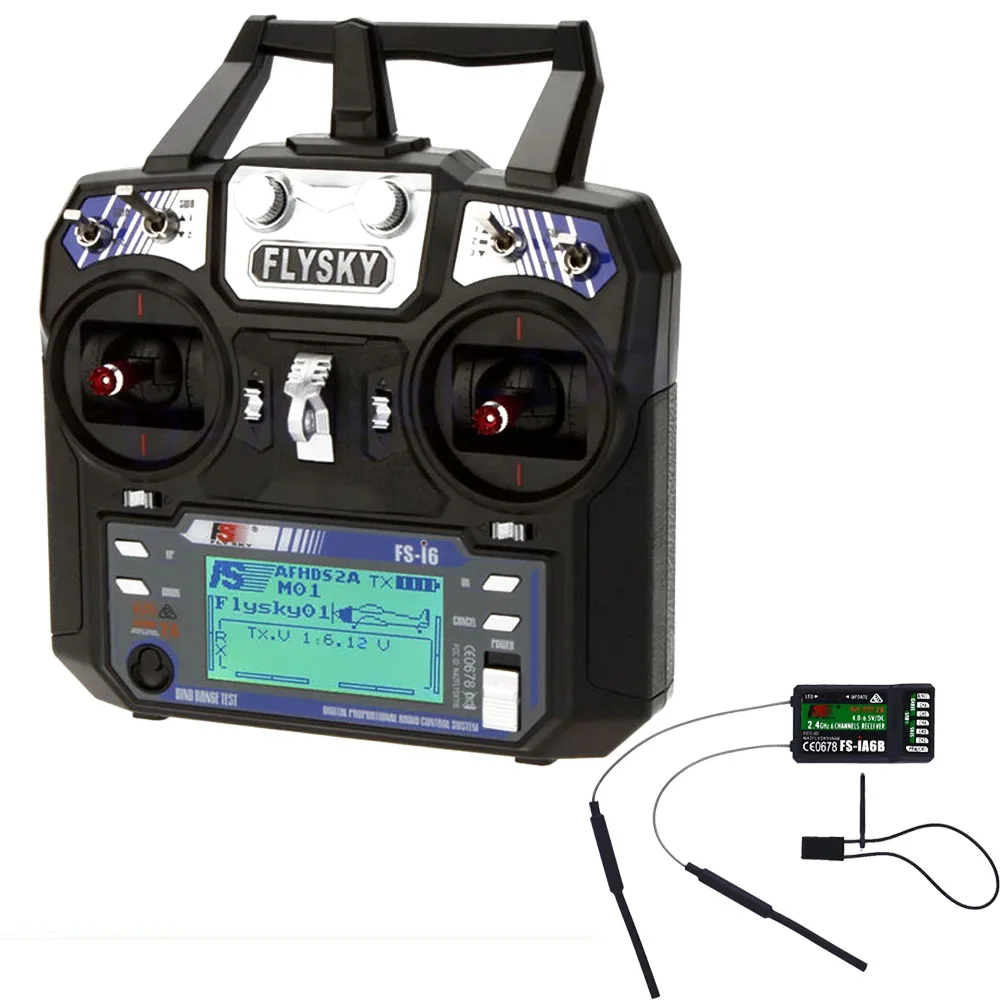

FS-i6
Channels: 6 Channels
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Weight:392g
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
Size: 174x89x190mm
On-line update:yes
Color: Black
Certificate: CE0678,FCC

FS-iA6B Receiver:
Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4–2.48GHZ
Band width number: 140
Transmitting power: not more than 20dBm
RF receiver sensitivity: -105dbm
2.4G mode: the second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna length: 26mm * 2 (dual antenna)
Input power: 4.0-6.5V DC
Color: Black
i-Bus interface: Yes
Data acquisition interface: Yes
Dimension: 46 * 25 * 15mm(not including cable length)
Cable length: 145mm
Net Weight: Approx. 16g
Package weight: 18g

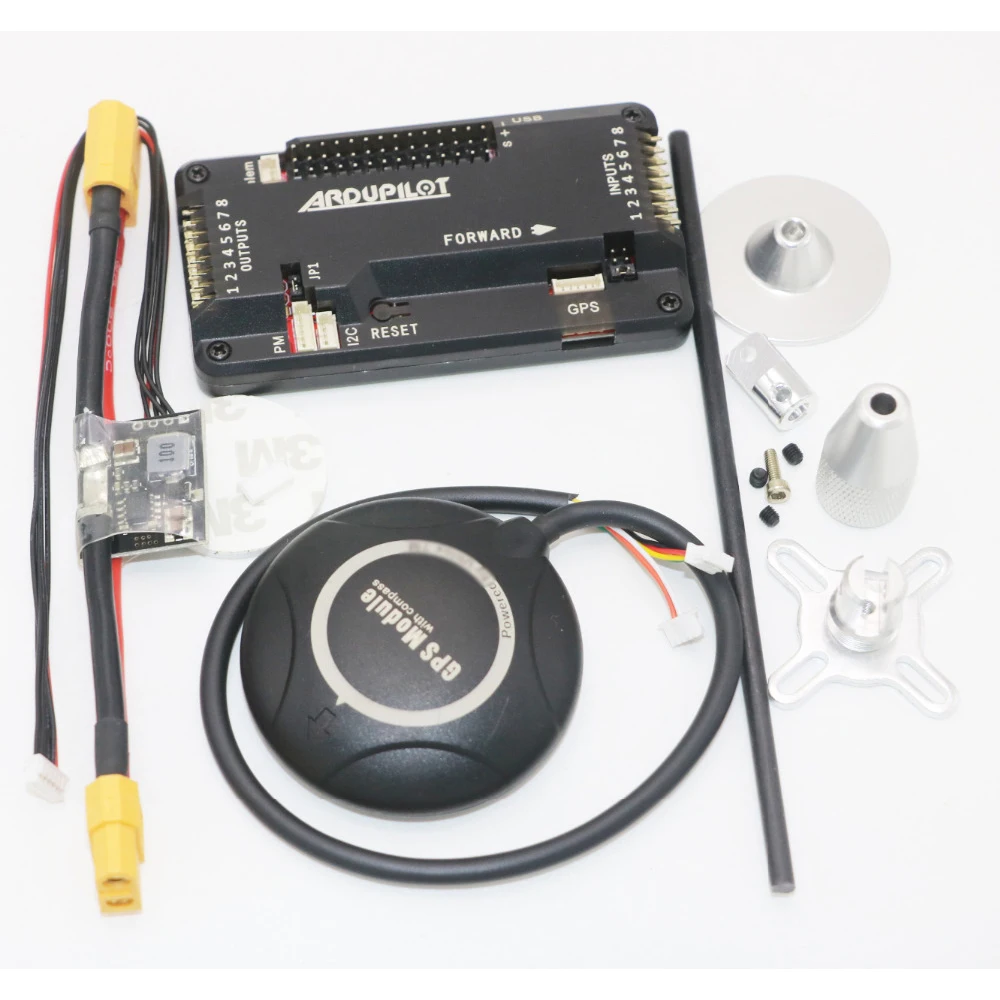

APM V2.8.0 description:
– This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
– Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
– V2.52 I2C interface changes to multifunctional MUX interface
– Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
– V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health
APM V2.8.0 Flight Controller
– Needle: staight
– Power supply: LP2985-3.3
– Max voltage: 16V
– Add a 47uF tantalum capacitor
– Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)
Jumper cap choose:
– Built-in compass: plug the jumper cap in the MAG pin header.
– External compass: pull up the jumper cap from the MAG pin header.
