ESP32S3 ST7789 TFT LCD Encoder Switch T-Embed ESP32-S3 Development Board 1.9inch LCD TFT 16MB Flash Drive Macro Knob Dropship

Features:

OOTDTY

High performances MCU：ESP32-S3 Dual-Core LX7 Microprocessor

Screen with 1.9inches ST7789V IPS full color TFT LCD Display.

Wireless connectivity support WIFI 802.11b/g/n BLE5

Drive Chip: ST7789; Onboard Functions: Reset+ Boot Button.

Support USB/Li-Po battery dual power supply

Specifications:

Item: T-Embed ESP32-S3 Development Board

Drive Chip: ST7789

MCU：ESP32-S3 Dual-Core LX7 Microprocessor

Programming Platform: Arduino-ide ESP-IDF

Screen: 1.9inches ST7789V IPS TFT LCD

Interface: SPI Type: TFT LCD

Flash: 16MB PSRAM 8MB

Bat Voltage Detection: IO04

Resolution: 170RGBx320(V)

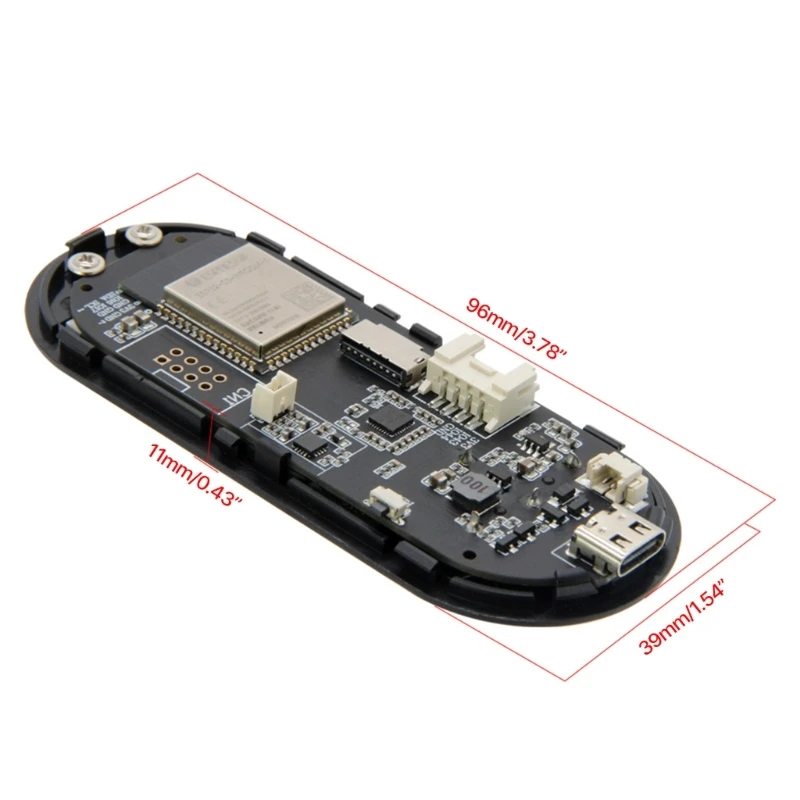

Size:approx96X39X11MM/3.78×1.50×0.43in

Color: Black/ Orange Button

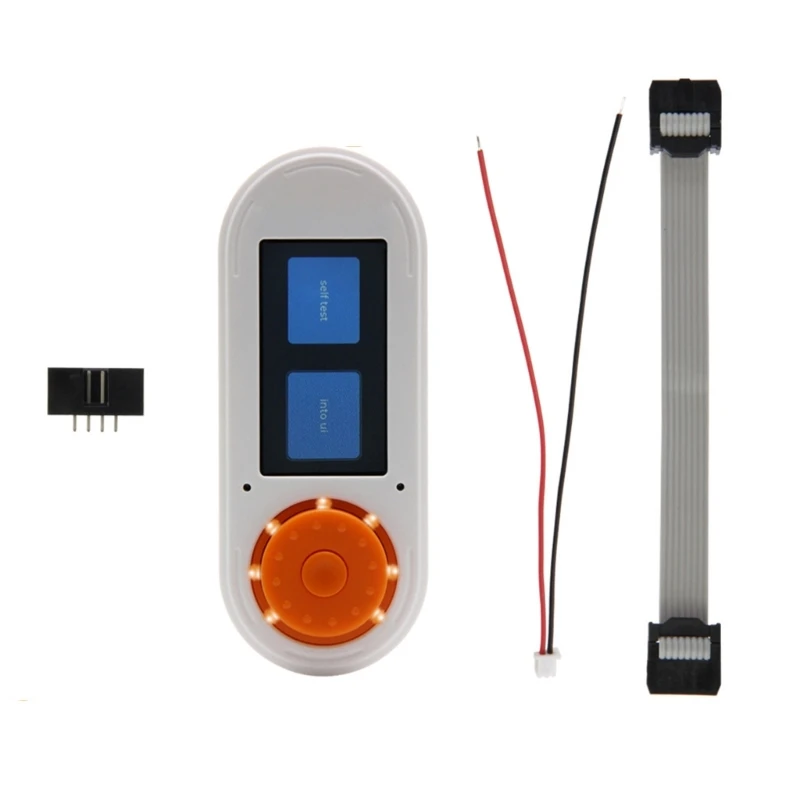

Package Includes:

1PC x T-Embed

1PC x IDC3 Box Header Connector 2.54 2x8P

1PC x Speaker

1PC x Box Header Cable 2.54 8 Pin 10cm

1PC xJST 1.25mm 2P

Note:

Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!

Due to manual measurement, please allow error of 0-1cm. Please make sure you do not mind before bidding.
