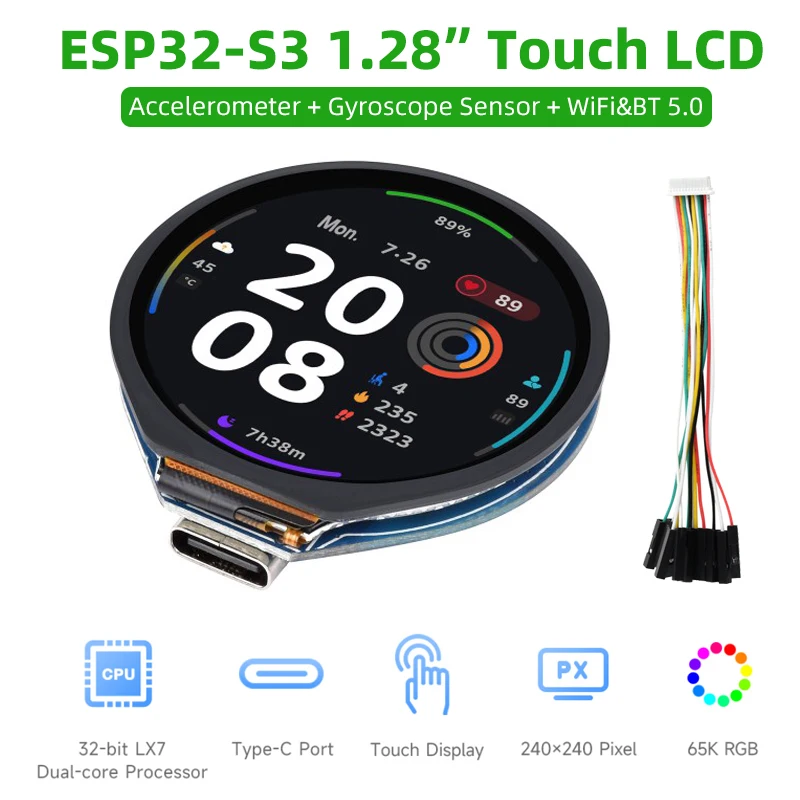

ESP32-S3 Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor
ESP32-S3-Touch-LCD-1.28
Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip
Features
ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
-
Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna
-
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
-
Type-C connector, keeps it up to date, easier to use
-

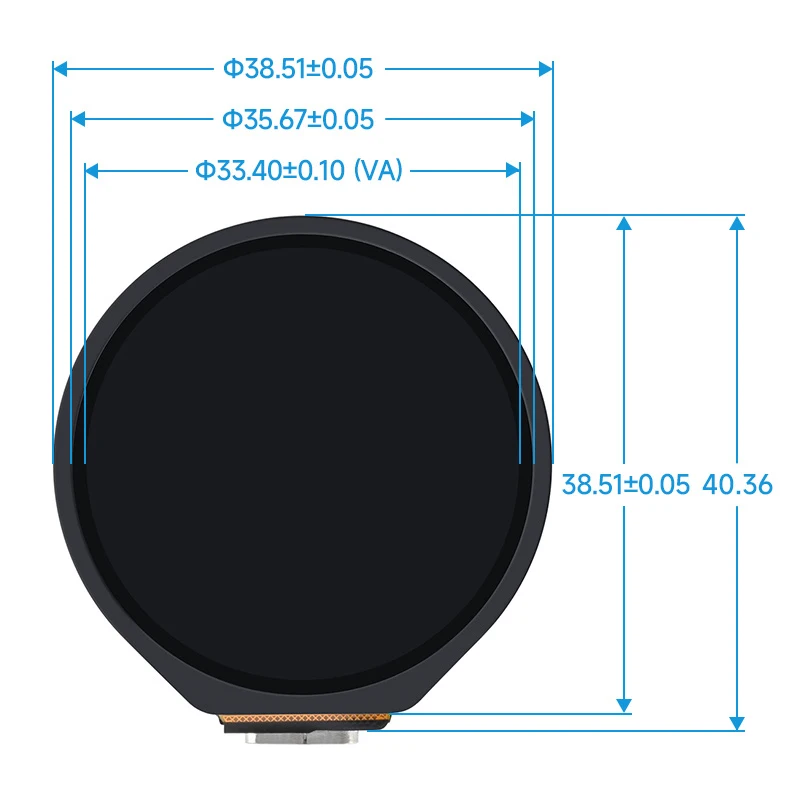

Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
-
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
-

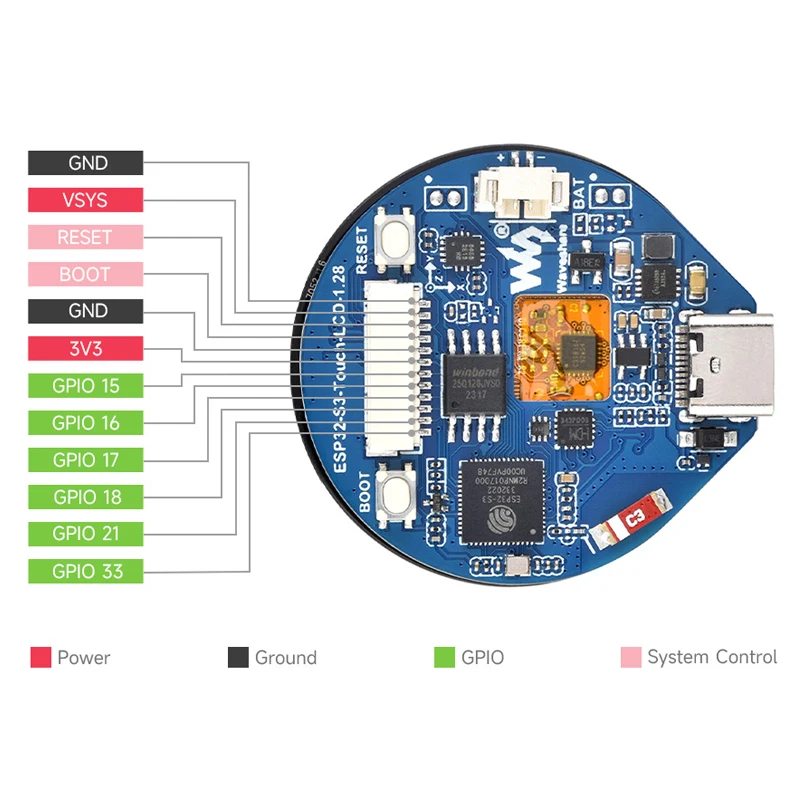

Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector
-
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
-
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

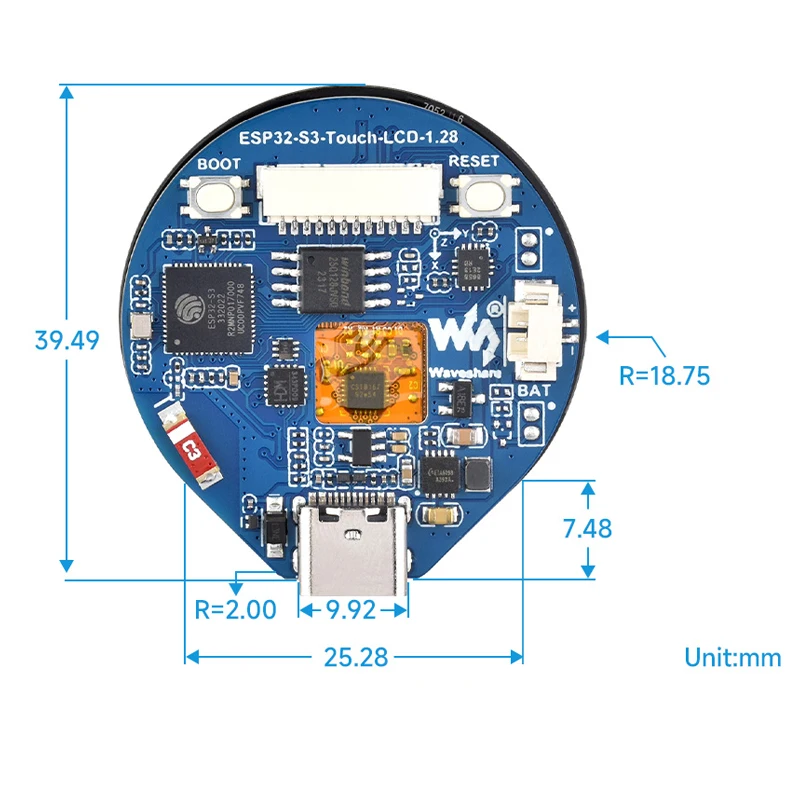

Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

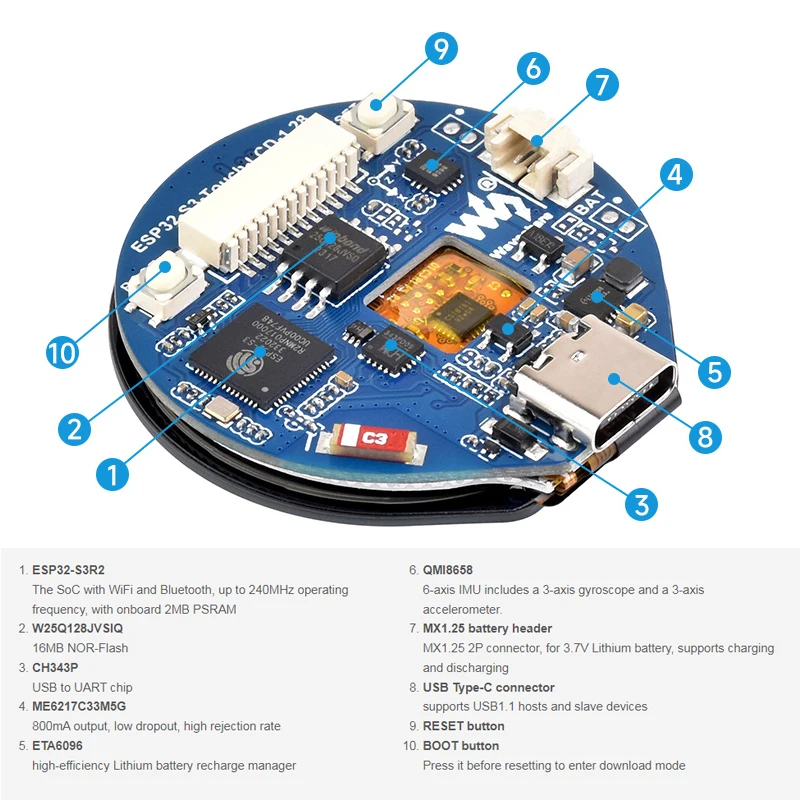

What's On Board
-
ESP32-S3R2
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
-
W25Q128JVSIQ
16MB NOR-Flash
-
CH343P
USB to UART chip
-
ME6217C33M5G
800mA output, low dropout, high rejection rate
-
ETA6096
high-efficiency Lithium battery recharge manager
-
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
-
MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
-
USB Type-C connector
supports USB1.1 hosts and slave devices
-
RESET button
-
BOOT button
Press it before resetting to enter download mode
Resources & Services
Packing List
1x ESP32-S3 1.28 Inch Touch LCD
1 x Cables
ESP32-S3-Touch-LCD-1.28-B （with Case）
Embedded GC9A01 Display Driver And CST816S Touch Driver, With CNC Metal Case
Features
ESP32-S3-Touch-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
-
Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna
-
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
-
Type-C connector, keeps it up to date, easier to use
-
Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
-
Adopts CNC metal case with Acrylic dull-polish bottom plate
-
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
-
Onboard 3.7V MX1.25 lithium battery recharge/discharge header
-
Adapting 6 × GPIO pins via SH1.0 connector
-
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
-
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

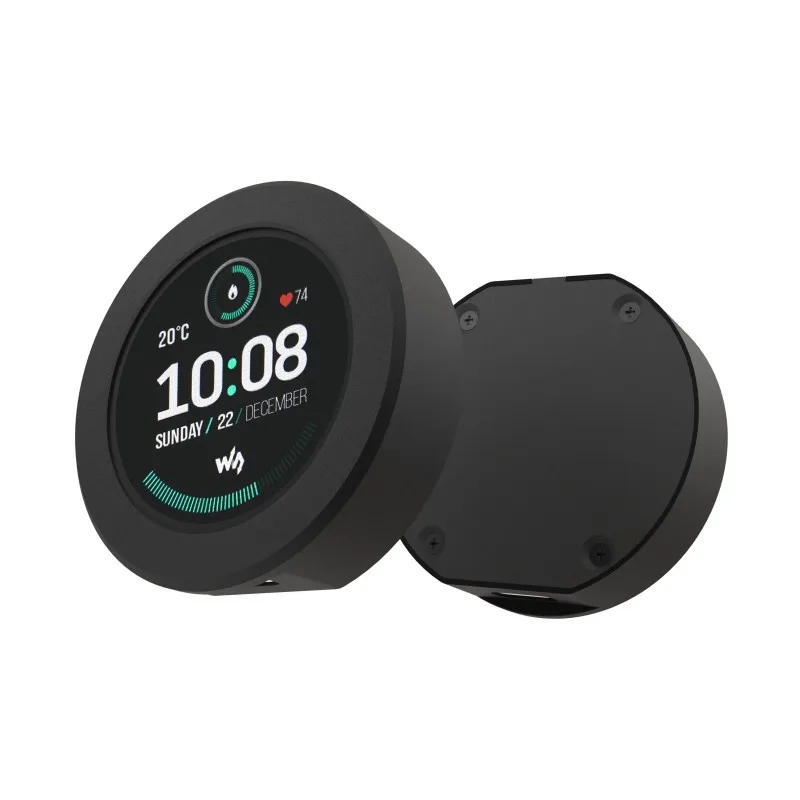

CNC Metal Case
Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate
What's On Board
-
ESP32-S3R2
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
-
W25Q128JVSIQ
16MB NOR-Flash
-
CH343P
USB to UART chip
-
ME6217C33M5G
800mA output, low dropout, high rejection rate
-
ETA6096
high-efficiency Lithium battery recharge manager
-
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
-
MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
-
USB Type-C connector
for programme burning and log printing
-
RESET button
-
BOOT button
Press it before resetting to enter download mode
Resources
Weight: 0.036 kg
-
ESP32-S3-Touch-LCD-1.28 x1
-
SH1.0 12PIN cable x1
-
Screwdriver x1
What is the price of ESP32-S3 Development Board 1.28 Inch Touch Screen Round LCD Display with WiFi Bluetooth 5 BLE Accelerometer Gyroscope Sensor in Bangladesh?
The latest price of ESP32-S3 Development Board 1.28 Inch Touch Screen Round LCD Display with WiFi Bluetooth 5 BLE Accelerometer Gyroscope Sensor in Bangladesh is BDT ৳ 2,937.02. You can buy the ESP32-S3 Development Board 1.28 Inch Touch Screen Round LCD Display with WiFi Bluetooth 5 BLE Accelerometer Gyroscope Sensor at the best price from our Shosta Dokan or visit Shosta Dokan Office.
