Contact us on WhatsAppThe chamber heater offers an additional chamber temperature heating control feature, with a max chamber temperature of 77℃. Higher chamber temperatures can reduce warping when printing high-temperature filaments and improve interlayer adhesion. Additionally, when printing with these high-temperature filaments, using the chamber heater can improve the print strength, particularly interlayer strength. For filaments such as PC, PA-CF, PAHT-CF, PET-CF, PPA-CF, PPS, and PPS-CF, setting the chamber temperature to 60°C can enhance dimensional accuracy and visual quality.
Maximum temperature: 80°C
The heater shell was printed with ABS-GF from Bambu Lab

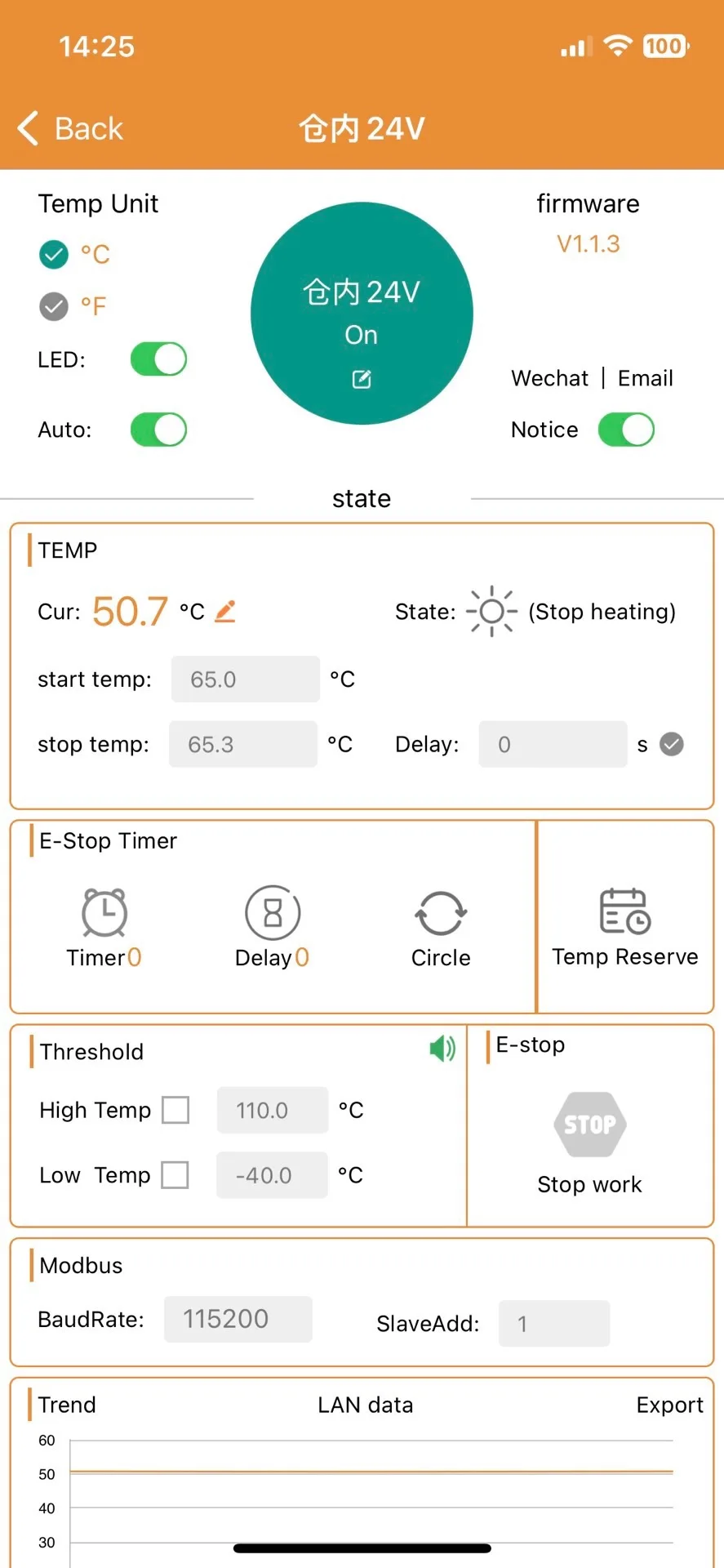

Remote Control with APP: Sinilink
Compatibility: for Bambu Lab X1, X1C, P1S, P1P; Voron Trident, (size NOT suitable for Voron 2.4); Creality K1, K1C, K1 Max, K2, K2 Plus 3D printers, etc.
Warning: It is strongly recommended not to enable high chamber temperature when printing PLA, PETG, TPU, PVA and other low-temperature filaments. Enabling high chamber temperature may cause these filaments to soften and become lodged in the extruder, resulting in clogging issues.
Recommended chamber temp for various filaments
Chamber temp for PLA, PETG, TPU, PVA, PLA's supports and other low-temperature filaments: OFF
Chamber temp for ASA, ABS: OFF
Chamber temp for PC, PA, PA-CF, PAHT-CF, PA6-CF, PET-CF, PPA-CF, PPA-GF, PPS, PPS-CF and other high-temperature filaments: 60 ℃
Thank you for the design and sharing from one of our customer. mounting bracket for the heater. We have updated on google drive in any case other customers want to: https://drive.google.com/drive/folders/1xwJJrI3yr-cH5twAOVEzap2FZ6UaLNHq?usp=drive_link
Specifications:
Maximum temperature: 80°C
Size: 21x12x5cm
The heater shell was printed with ABS-GF from Bambu Lab
Rated Voltage: 220V / 110V

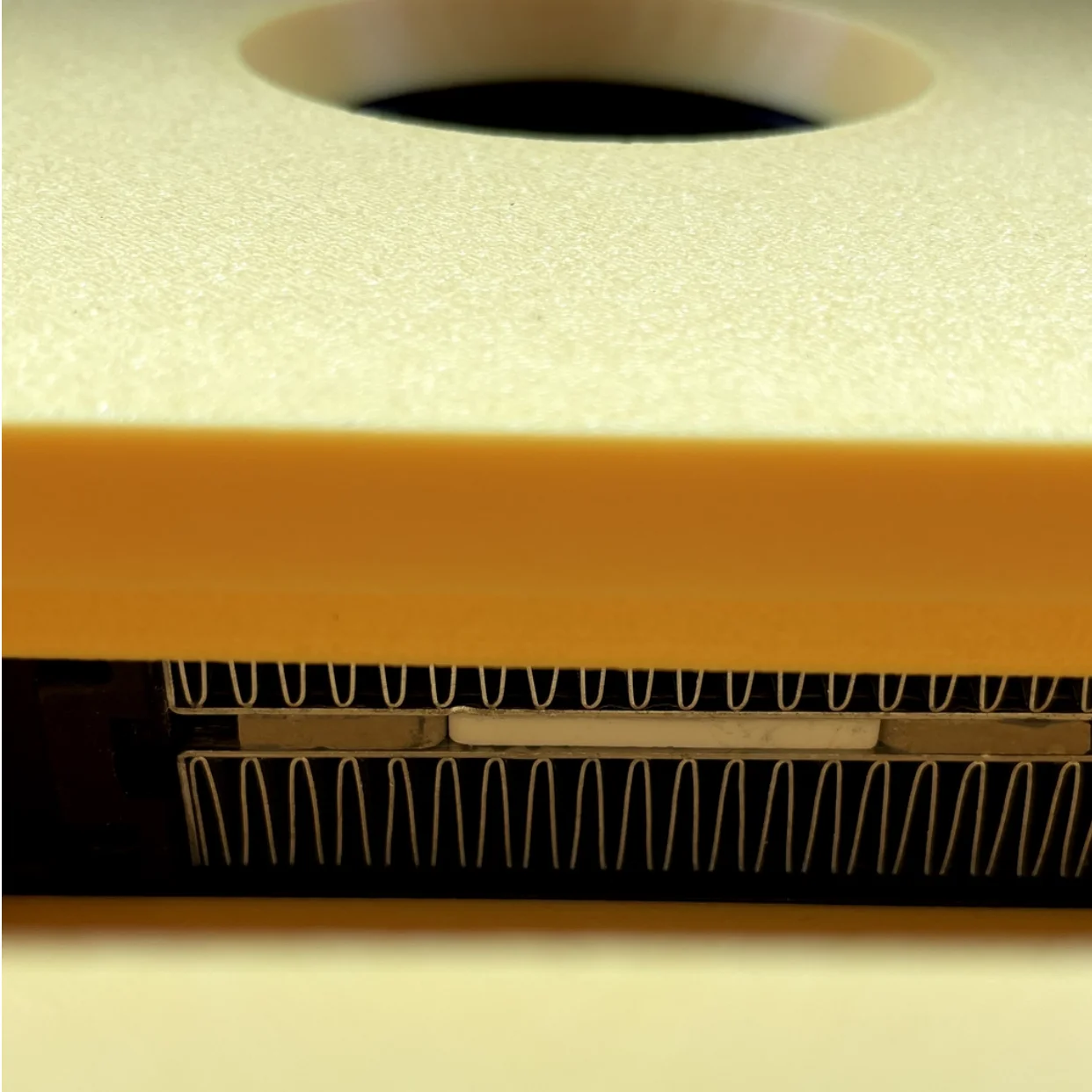

PTC Heater Rated Power: 150W
Fan: 8030fan, 12V, 0.35A
have 2.4g on your router, and on the phone connect 2.4g. better use ap mode to connect.
Pls be noted, for the app connection, it does not support 5g, so you have to use the 2.4g.
made a hotspot with your mobile that had the same name as your wifi.
SSID name: SinilinkProduct
The chamber heatercanset start temperature and target temperature manually.

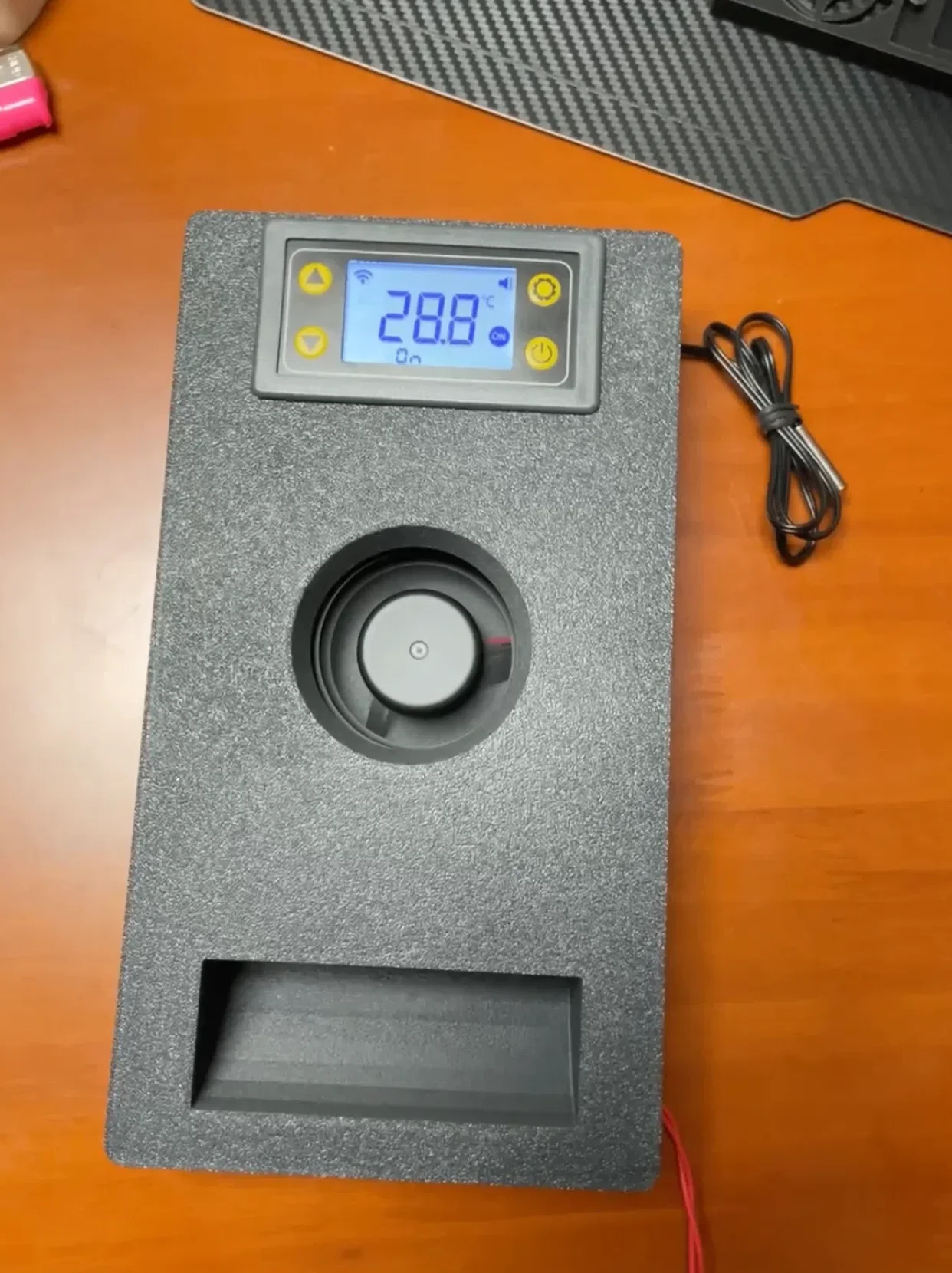

There are four buttons on the chamber heater, up, down, setting, and power.
The down button can be used to turn on and off the screen light, just press once.
The power button is used to turn on and off the fan.
The setting button is used to switch between the start temperature and target temperature.
To set temperatures, press the setting button, then press the up and down button to adjust. Once you done, press the setting button to switch to the target temperature, then adjust it. Wait a few seconds, the chamber will heater confirms the settings automatically. Then press the power button to start. Once the temperature sensor detects the target temperature, it will stop automatically.
The power wires connected to the printer's power, to the AC L, and AC N.
For Bambu Lab X1 power supply info, you could refer to the Bambu Lab wiki page below:
https://wiki.bambulab.com/en/x1/maintenance/replace-power-module

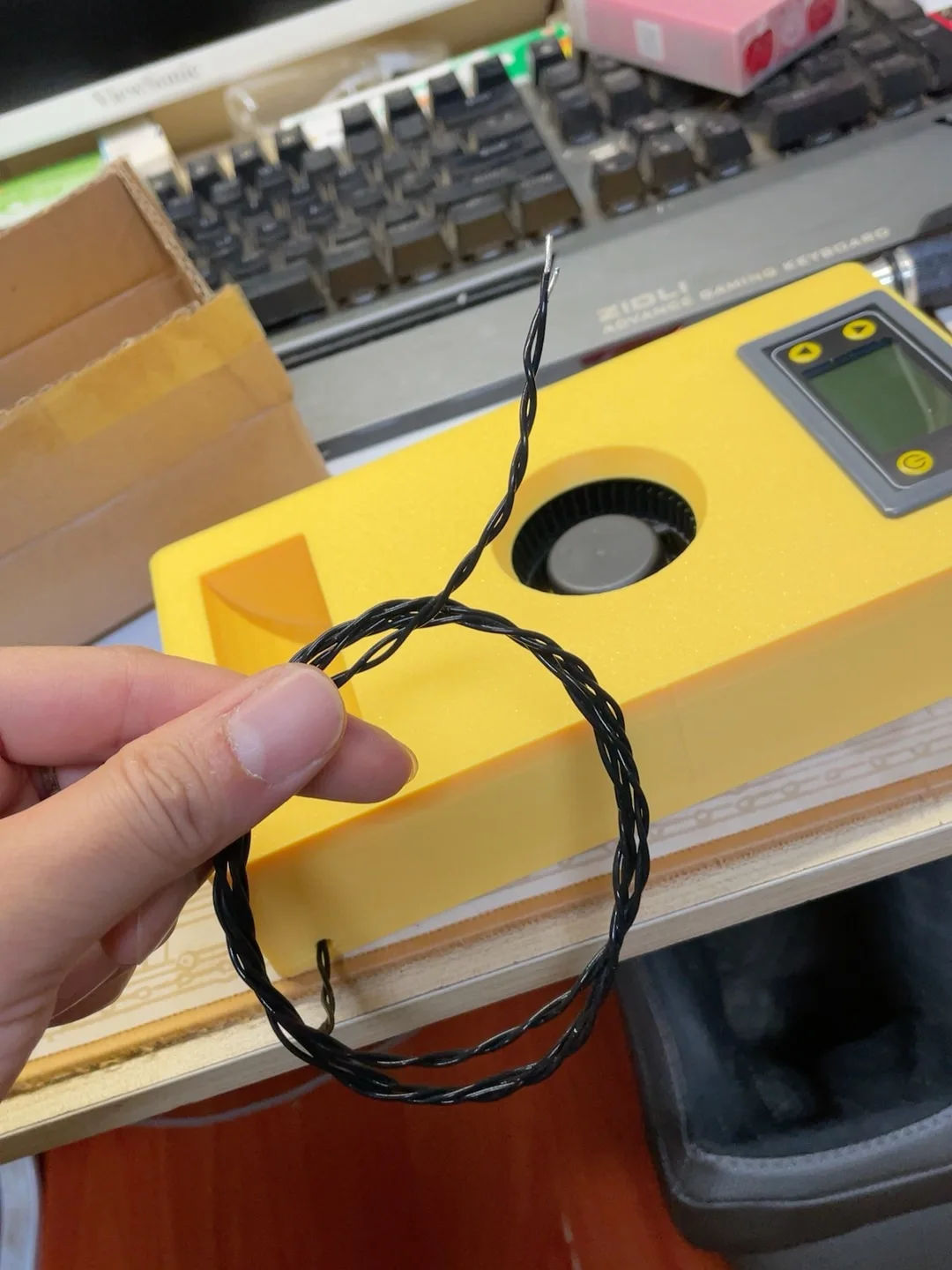

The thermistor is fixed with zip tie in the chamber.

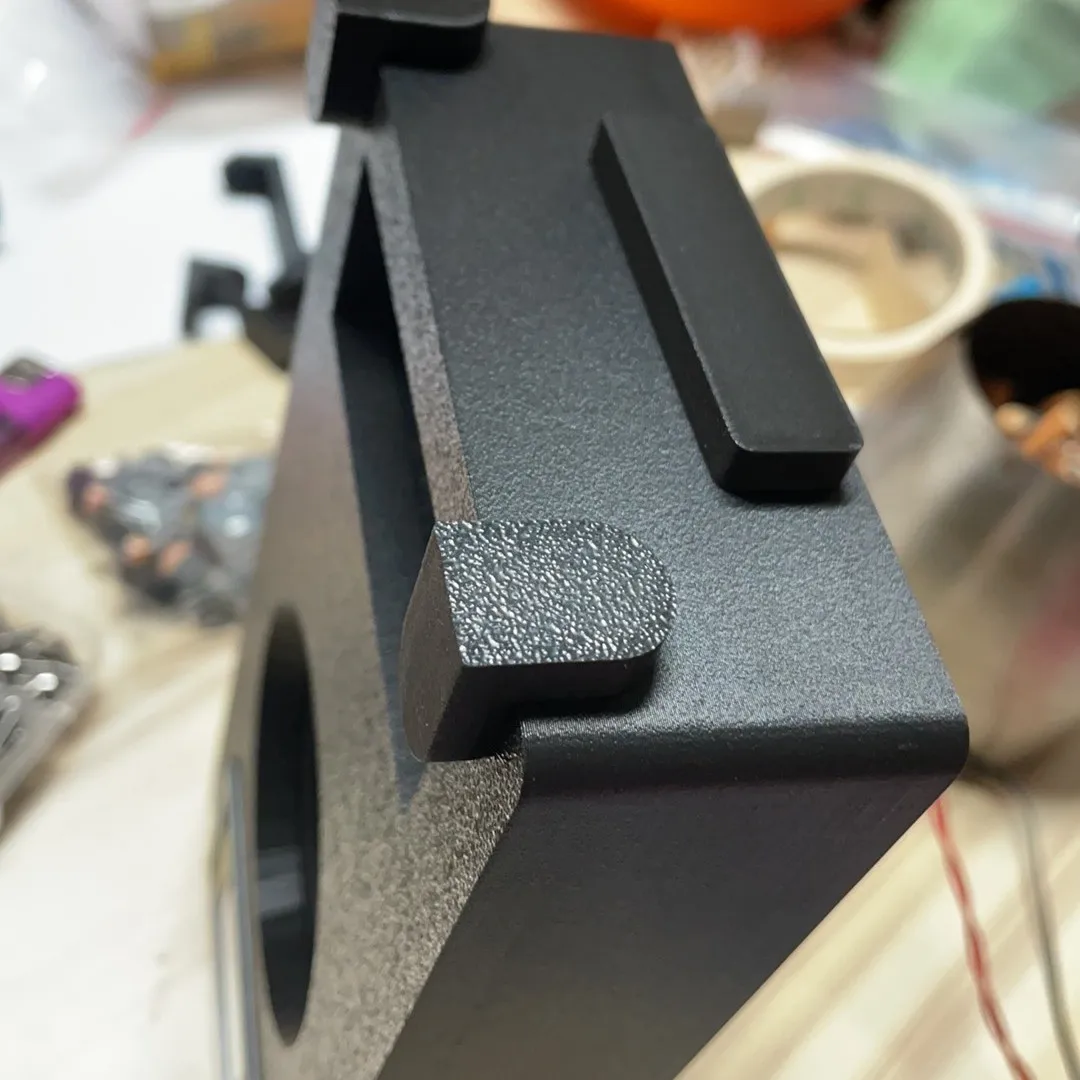

The shell was 3D printed with Bambu Lab ABS-GF filaments to stand for high temperature print. Bambu ABS-GF is a glass fiber-reinforced ABS filament, enhanced in both mechanical and aesthetic properties. Compared with regular ABS, ABS-GF outperforms in strength, stiffness, temperature resistance and dimensional stability, while being less prone to deformation and warping. Glass fiber imparts a smooth matte finish with micro-spot gloss, blurring layer lines.
Enhanced Strength and Stiffness
Greater Dimensional Stability
Fine Matte Finish
Durability and Water Resistance
Heat Resistance (HDT, 0.45 MPa): 99℃
Does this have a thermal fuse?
This chamber heater has built-in short-distance protection and does not require an additional fuse wire. All wires in the chamber heater are made of Teflon high-temperature resistance and can be heated at 600 degrees with confidence. The built-in electronic short-distance protection combined with the relay is much safer than ordinary fuse. There will be a problem with using fuse. It cannot be used for a long time at high temperatures. The thin wires in the fuse glass pipe will automatically break during long-term high temperatures.
