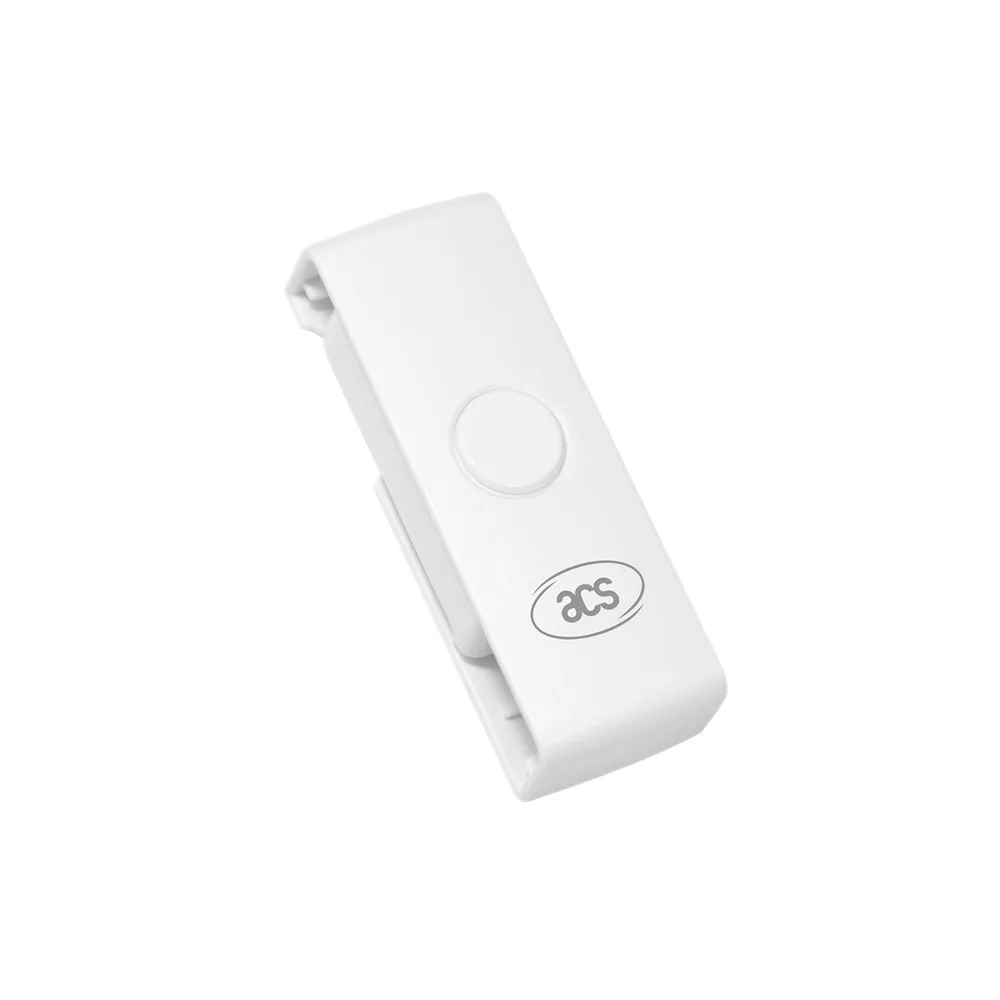

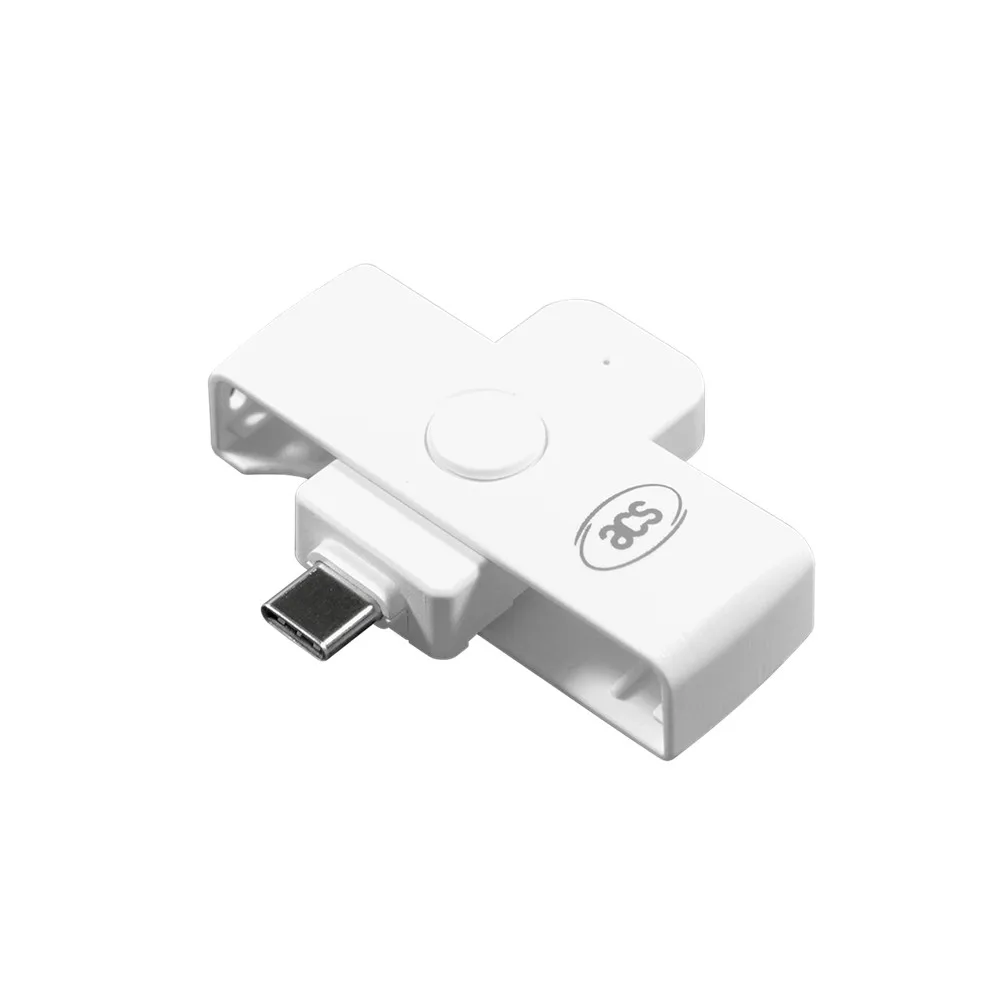

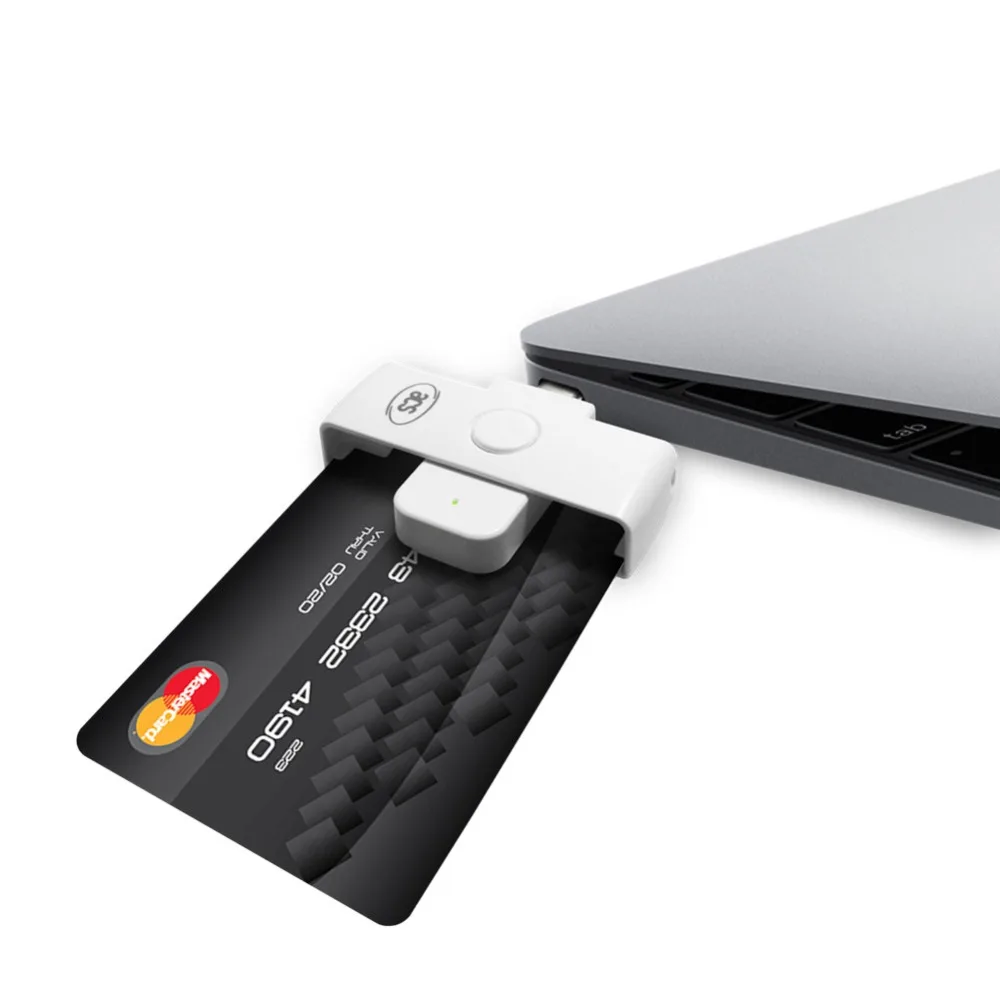

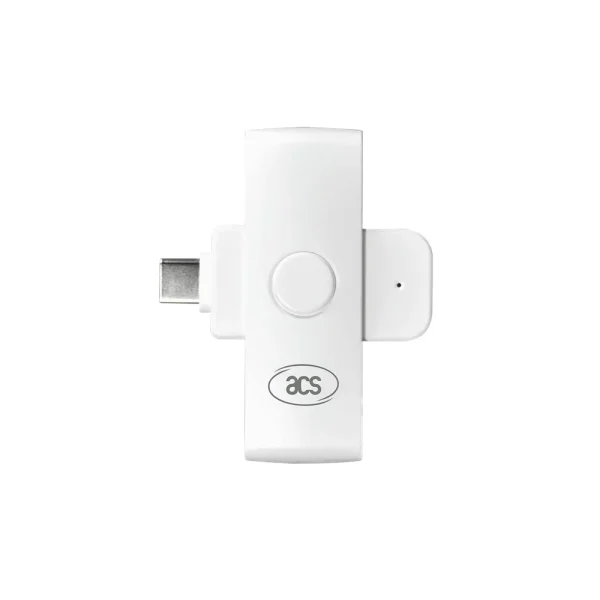

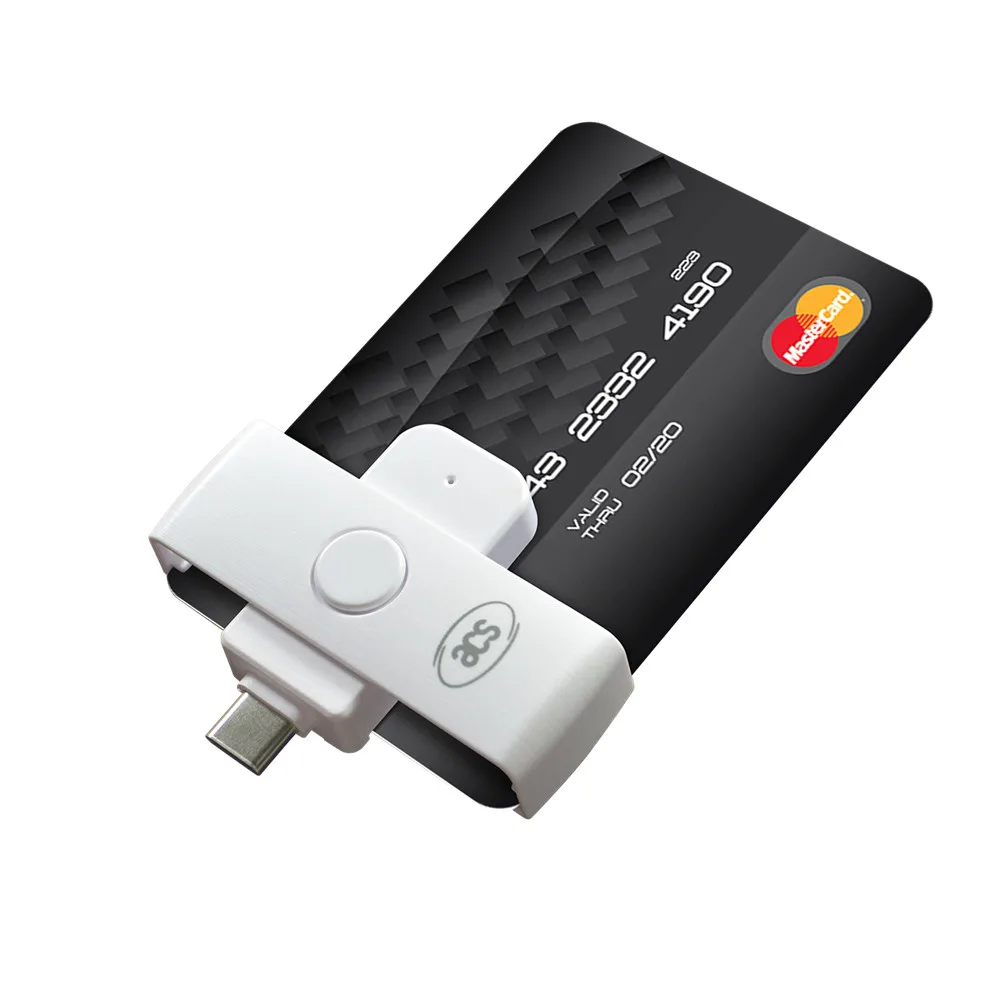

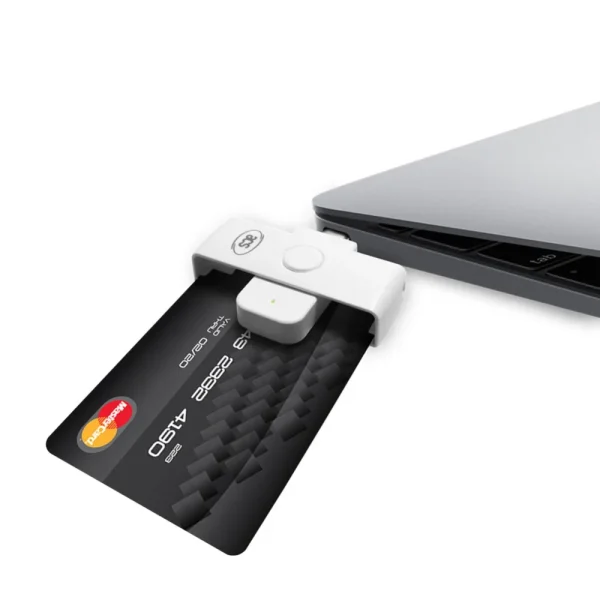

ACR39U-NF Pocketmate II Smart Card Reader (USB Type-C) For CAC and PIV cards Thunderbolt 3, SLE4442 SLE4428 AT24C64 Memory Cards

ACR39U-NF

Pocketmate II Smart Card Reader (USB Type-C)





ACR39 Pocketmate II with USB Type C Connector represents an ACS new paradigm.No larger than a USB stick, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides value and reliable functionality to meet your security needs.

ACR39U PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. It supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC) and SIPRNET Card. This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.

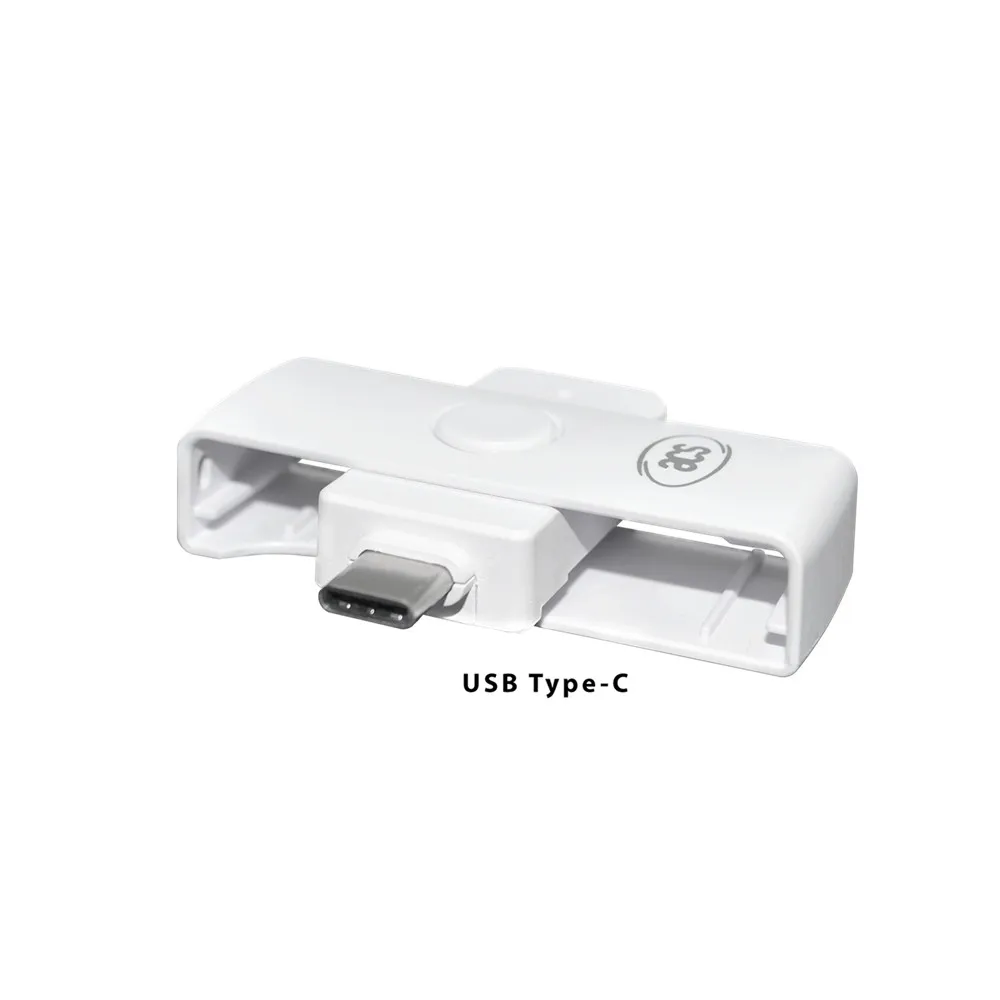

This USB Type-C connector version of ACR39U Pocketmate II enables backwards compatibility and reversible use, along with all of the features mentioned for ACR39U series. ACR39U PocketMate II can easily be integrated in a computer-based or mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Solaris, and Mac OS®. In addition, ACR39U PocketMate II may now be used on mobile devices running on Android™ versions 3.1 and later.

With the evolution of ACR39U Pocketmate II to USB-Type C, there are now more opportunies for the next generation of your smart card solution.



Spec



• USB 2.0 Full Speed Interface

• USB Type C Connector

• Plug and Play – CCID support brings utmost mobility

• Swivel Motion Design

• Smart Card Reader:

o Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

o Supports CAC

o Supports SIPRNET Card

o Supports J-LIS Card

o Supports microprocessor cards with T=0 or T=1 protocol

o Supports memory cards

o Supports PPS (Protocol and Parameters Selection)

o Features Short-Circuit Protection

• Application Programming Interface:

o Supports PC/SC

o Supports CT-API CT-API (through wrapper on top of PC/SC)

• Supports Android™ 3.1 and later



Dimensions58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H)Contact Smart Card Interface

• Number of Slots: 1 Full-sized Card Slot

• Standard: ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

• Protocol: T=0; T=1; Memory Card Support

• Others: CAC, PIV, SIPRNET, J-LIS Smart Cards

Compliance / Certifications

• EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1 (Contact), TAA (US), J-LIS (Japan), VCCI (Japan), PBOC (China), CE, FCC, WEEE, RoHS 2, REACH

• Microsoft® WHQL

Operating System Support

• Windows

• Linux

• Mac OS

• Android

• Solaris





Main Application



• e-Government

• Banking & Payment

• e-Healthcare

• Network Security

• Access Control

• Public Key Infrastructure

• e-Purse & Loyalty
